Packaging Type :Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material :Paper, Plastic
Automatic Grade :Automatic
Driven Type :Pneumatic
Voltage :220V,50/60HZ
Power :3.0Kw
Place of Origin :Guangdong, China (Mainland)
Brand Name :UMEO
Dimension(L*W*H) :L1270*W900*H1850mm
Certification :CE Certification
Main function :Filling,measuring,feeding,forming,sealing
Packing material :Complex film: OPP/CPP,OPP/PE,BOPP/VMPET/PE etc
Bag type :Pillow bag
Packing speed :30-55 bag / min
Measuring range :500ml
Film thickness :40-80μm
Bag Length :50-200mm
Bag width :50-150mm
N.W. :350Kg
After-sales Service Provided :Engineers available to service machinery overseas
Selling Units :Single item
Single volume :5 cm 3
Single gross weight :850.0 kg
Package Type :Inner wrap PE film,external with reinforced non-fumigation plywood case.
MOQ :1 Sets
Price :US $11500.00
Contact Now
Multi-material small business sachet packing machine
Product Description
Feature
1. Imported PLC computer control system,color touch screen,easy operation and much more stable;
2. Seperate pneumatic control and power control with low noise and more stable circuit ;
3. Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation;
4. Multiple automatic alarm protection,reducing the loss furthest;
5. External loading film system to make the setting easily. 6. Enclosed mechanism is used to prevent dust entering effectively.

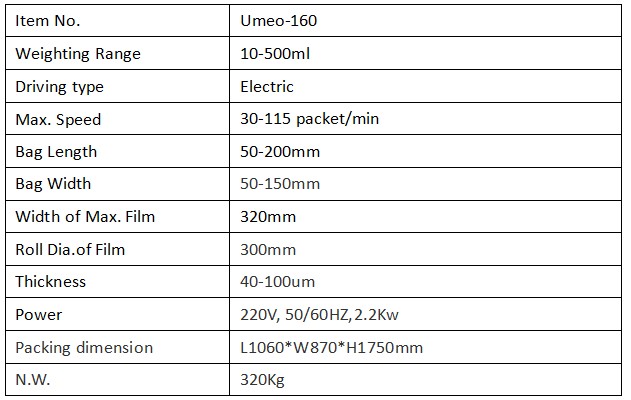

Specification
Application

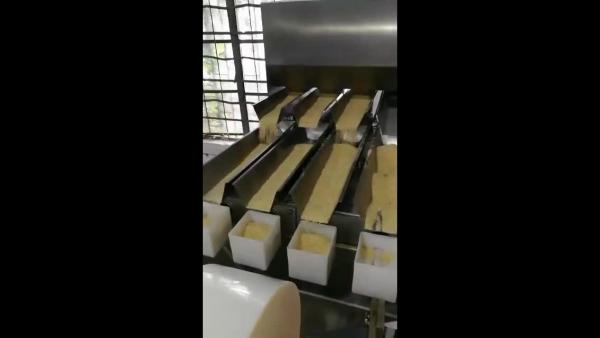

Multi-material packaging machine tea mixed machine is suitable for small sachet packing or mixed packing with 4 different product Max.,such as tea,rice,beans,etc.

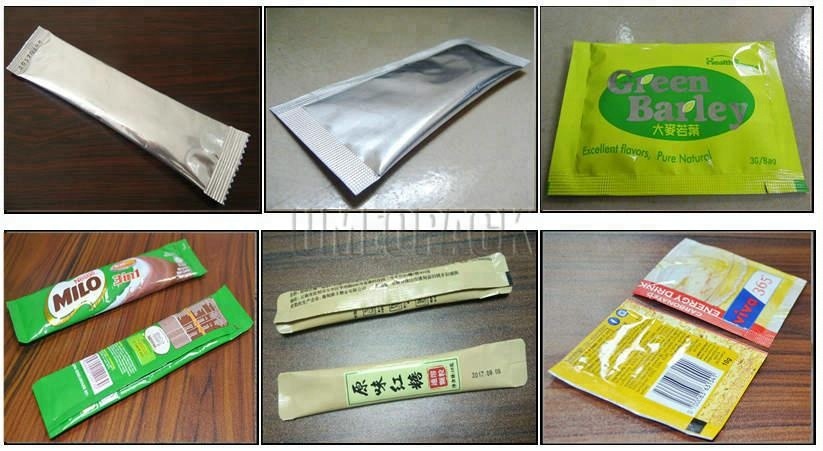

Sample bag

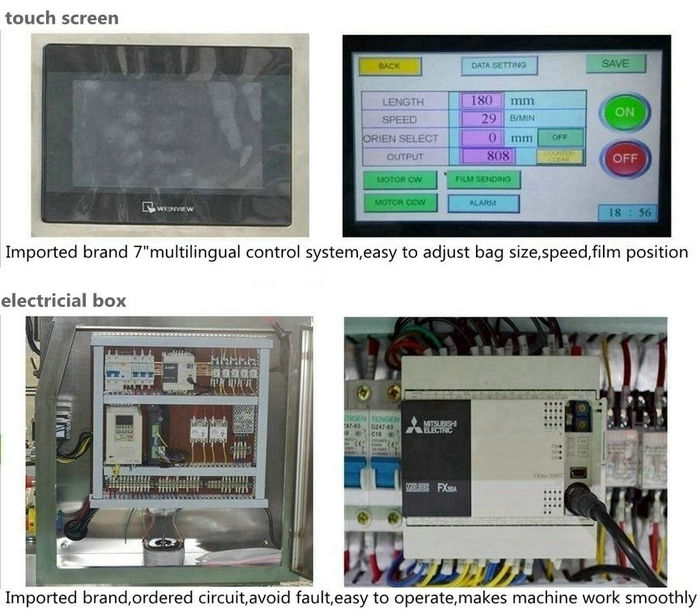

Detailed Images
UMEO always pays much more attention to every part of each packing machine
Packaging & Shipping
Marketing and Client
Our Services
Pre-sales Service:
Step 1: One on one free project consulation,designing and free cost evaluation.
Step 2: Production line recommendation.
Step 3: Order confirmed.
Medium-sales Services:
Step 4: Deposit in and machine production on.
Step 5: Qualified raw material suppliers ( fabric,solutions,films,stickers etc) introduced.
Step 6: Raw material sample purchased for trial running.
Step 7: Machine inspection,installation and operation training conducted.
Step 8: Wipes production experience provides.
Step 9: Machine settled for standard plywood case packaging.
Step10:Balance received and delivery machine.
After-sales Services:
Step11: Machine transportation.
Step12: Long-distance guidance for installation and operation or engineer available for oversea.
Step13: Life-long machine maintenance service and warranty.
